PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap

zhangjiagang aquatrin Machinery co.,ltd
Contact Now

PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Function : Bottle Washing Filling Capping

Core Components : PLC

Advantage : Efficiency

Filling volume : :200ml-2000ml

Filling Accuracy : 99.9%

Contact Now

Automatic 3 In 1 Bottle Pure Mineral Drinking Table Spring Water Filling Machine Equipment Price

Product Description
PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap
The CGF Wash-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage and other non-gas beverage machinery. Beverage Machinery can finish washing , filling and sealing bottles in one machine and reduce the dust and exposure time, improve the sanitary conditions, production capacity and economic efficiency. The whole process is automatic.
Technical Parameters
Model
CGF14-12-5
Capacity
5000PBH
Washing heads
14
88Filling heads
12
Capping heads
5
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
1500kg
Main motor power
1.2kw
Machine components
PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap

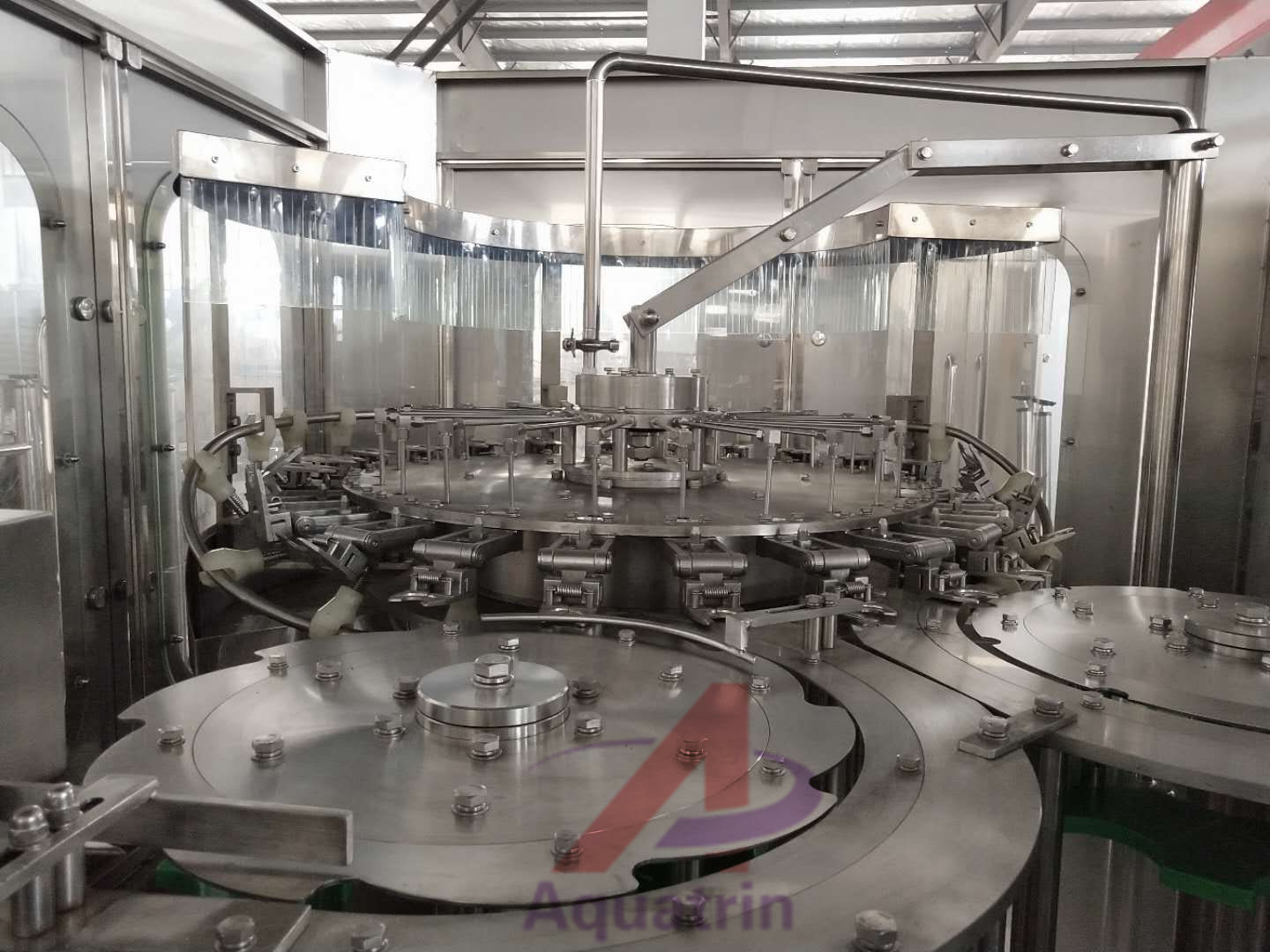

The Washing Heads
1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. Bottle clip is made of SUS304 stainless steel, health and durable.
3). Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
5). Washing part moves by a frame in the transmission system through the gear transmission.
4). Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap
The Filling Heads
1). The washing bottle, filling, sealing are connecting with the thumb wheel card bottleneck transportation methods. 2). The rotating disk is all made of SUS304 stainless. 3). Filling method is gravity filling. 4). Filling valve manufactured by SUS304. 5). The filling valve structure design is reasonable, the filling quantity is accurate.
PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap
The Capping Heads
1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping 2.304/316 stainless steel construction 3.No bottle no capping 4.Automatic stop when lack of bottle

Characteristic

1.Intelligent contact screen, human design, easy operation.
2.Imported filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all imported, stability and reliability.
5.Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
6.Solely and specially-designed whole lifting device, easy governing to meet the needs of all kinds of container packing
Control system
S/N
Name
Brand
Country
1
Main motor
ABB
Switzerland
2
Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap

PLC 200ml Spring Water Filling Machine 5000PBH Plastic Screw Cap
